Sigma Cap Pro
Sigma Cap Pro

Clamshell

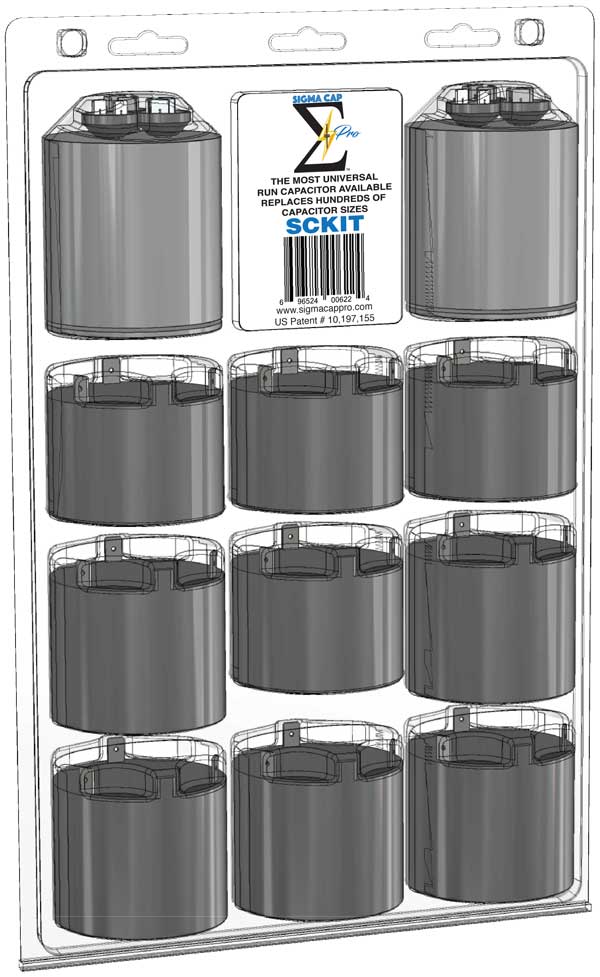

Sigma Cap Pro clamshell kit

Available Now

The most universal, permanent replacement run capacitor on the market

  • Replaces hundreds of different capacitor sizes both singles and duals.
  • All units dual rated for 370/440 VAC.
  • Simple to use.
  • Finish the service job in just one trip. You always have the right size capacitor!
  • Each pod can be used as a stand alone unit or stacked to get the MFD value needed.
  • Reduces truck stock.
  • Saves time and trips the parts house.
  • Permanent fix. No reason to return to the job!
  • Sigma Cap holds a US Patent.
  • Individual pods available so you can adjust stock for your most common builds.
  • Rotate and stack the pods to add capacitance on the correct side to build the dual capacitor needed.
  • Sigma Pro TM is easy to use. Simply connect the individual pods by snapping them together to create the size capacitor you are going to replace.
  • Add up the numbers down each side to confirm the MFD rating!
  • Starter Kits supplied in a reusable clear container.
  • Made in the USA

Box

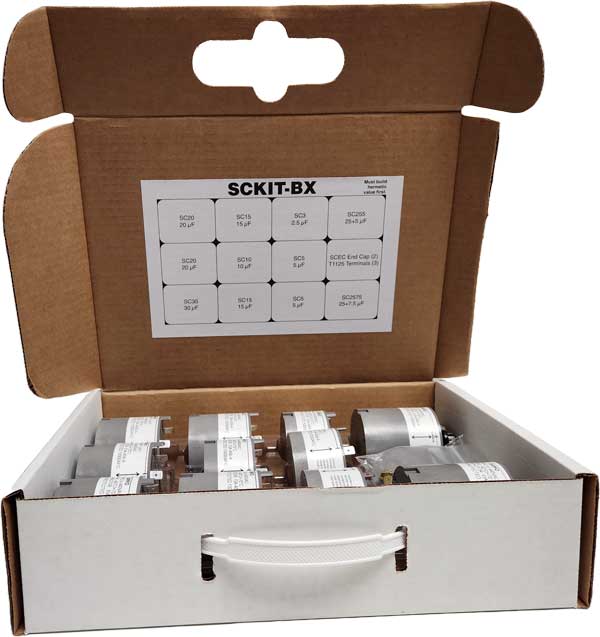

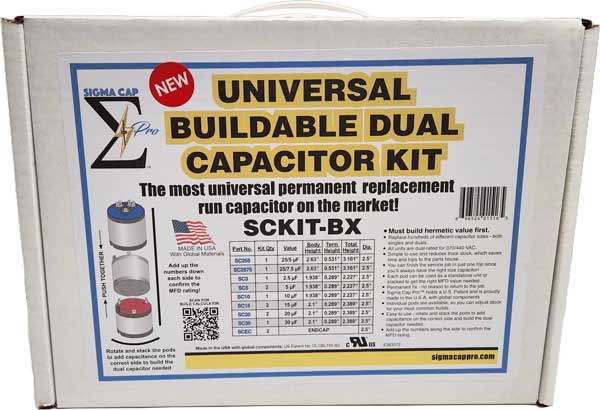

Sigma Cap Pro box cover Sigma Cap Pro box open

6 Ways to Buy!

SKU Packaging Contains
SCKIT Clamshell (1) SC255, (1) SC2575, (1) SC3, (2) SC5, (1) SC10, (2) SC15, (2) SC20, (1) SC30, (2) SCEC, (3) T1125 terminals
SCKIT-BX Box (1) SC255, (1) SC2575, (1) SC3, (2) SC5, (1) SC10, (2) SC15, (2) SC20, (1) SC30, (2) SCEC, (3) T1125 terminals
SCKIT-5 Clamshell (1) SC255, (1) SC5, (1) SC10, (1) SC20, (1) SC30, (2) SCEC, (3) T1125 terminals
SCKIT-5BX Box (1) SC255, (1) SC5, (1) SC10, (1) SC20, (1) SC30, (2) SCEC, (3) T1125 terminals
SCKIT-75 Clamshell (1) SC2575, (1) SC5, (1) SC10, (1) SC20, (1) SC30, (2) SCEC, (3) T1125 terminals
SCKIT-75BX Box (1) SC2575, (1) SC5, (1) SC10, (1) SC20, (1) SC30, (2) SCEC, (3) T1125 terminals
Part No. SCKIT Qty SCKIT-BX Qty SCKIT-5 Qty SCKIT-5BX Qty SCKIT-75 Qty SCKIT-75BX Qty Value Body Height Terminal Height Total Height Diameter
SC255 1 1 1 1 0 0 25/5 µF 2.63" 0.531" 3.161" 2.5"
SC2575 1 1 0 0 1 1 25/7.5 µF 2.63" 0.531" 3.161" 2.5"
SC3 1 1 0 0 0 0 2.5 µF 1.938" 0.289" 2.227" 2.5"
SC5 2 2 1 1 1 1 5 µF 1.938" 0.289" 2.227" 2.5"
SC10 1 1 1 1 1 1 10 µF 1.938" 0.289" 2.227" 2.5"
SC15 2 2 0 0 0 0 15 µF 2.1" 0.289" 2.389" 2.5"
SC20 2 2 1 1 1 1 20 µF 2.1" 0.289" 2.389" 2.5"
SC30 1 1 1 1 1 1 30 µF 2.1" 0.289" 2.389" 2.5"
SCEC 2 2 2 2 2 2 Endcap 2.5"
T1125 3 3 3 3 3 3 Terminal

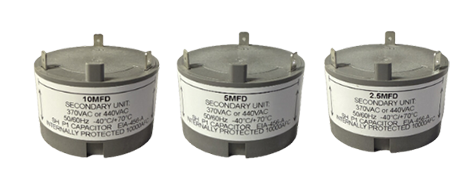

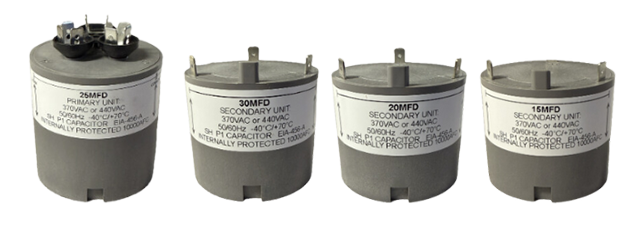

Individual pods available

Click Here for Sigma Instructions
Click the video below to play

View extended video and technical overview here

Where to Buy Sigma Cap Pro

Sigma Cap Pro is available through members of the WD Armstrong buying group. Find a member near you to purchase.

View Member List
